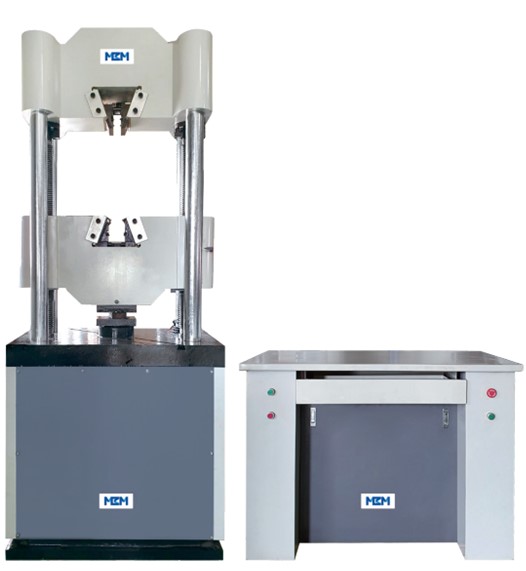

| SPEC SHEET | |||
| Model | MBM-300B | MBM-600B | MBM-1000B |
| Techincal Parameter | |||
| Max. tension power | 300kN | 600kN | 1000kN |
| Software control | PC controlled Electro-hydraulic Servo UTM S/W | ||
| Testing Power Distance | 2 % - 100% FS | ||
| Distorition testing precision | ± 1% / ±0.5% | ||
| Distorition testing range | 2 % - 100% Full range of extensometer | ||
| Displacement measuring | 0.01mm | ||
| Max. lift speed of testing B/D | 70mm/min | ||
| Piston travel | 150mm | ||
| Max. tension distance | 750mm | 650mm | 630mm |
| Compress distance | 0 - 610mm | 0 - 510mm | 0 - 590mm |
| Clamp grip parmeter | |||
| Clamp diameter of round specimen | ∮ 10-32mm | ∮ 13-40mm | ∮ 20-60mm |
| Clamp width of flat specimen | 0 - 15mm | 0 - 30mm | 0 - 40mm |
| Size of compression plate | 160mm X 160mm | 205mm X 205mm | 205mm X 205mm |
| Bending stick width | 140mm | ||
| Bending degree allawance | 100mm | 150mm | |
| Main Frame parmeter | |||
| Main flame size | 740 x 580 x 2045 mm | 900 x 630 x 2160 mm | 900 x 630 x 2250 mm |
| Controller size | 1040 x 650 x 860 mm | ||
| Oil pump power | 1.5kW | ||
| Low grip motor power | 0.75 kW | 0.75 kW | 1.1 kW |
| Distortion testing device | Electronic Extensometer | ||
| Overload protection | 2 - 5% | ||
| Weight | 1800kgs | 2300kgs | 3000kgs |
